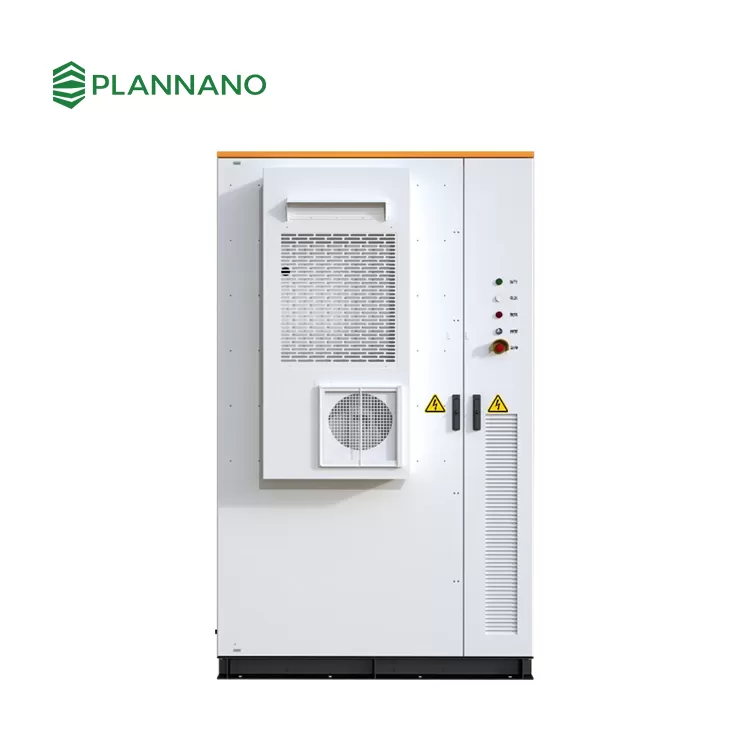

100KW 215Kwh Air Cooling Industrial and Commercial Energy Storage System
100KW 215Kwh
Cooling Method: Air Cooling
Weight:3T±0.2T
CE IEC62619 MSDS UN38.3
Technical Parameter
Specifications And Models
100KW 215Kwh Air Cooling
AC Side Parameters
| Rated power supply | 100kW |
| Rated grid power supply | AC 380V |
| Control power supply | 220V |
| Grid frequency range | 50 ± 2.5Hz |
| Communication access method | Three-phase four-wire |
| Grid voltage range | -10 % ~ + 15 % |
| Current total harmonic distortion rate | ≤ 3% full load |
| Power factor | -1～+1 |
DC Side Parameters
| Installed Energy Capacity | 215.04kWh |
| Rated voltage DC | 672 V ~ 876 V |
| DC rated current | 140A |
| Battery rated capacity | 180A |
| Maximum DC power | 110KW |
System Parameters
| Discharge depth | under rated condition ≥ 86% |
| Working temperature | -20 ℃ ~ +50 ℃ |
| Allowed relative humidity | ≤ 95%, no condensation |
| Noise | ≤ 65dB |
| Cooling method | Air cooling |
| Firefighting system | Aerosol/ perfluorohexanone |
| Protection level | IP 54 |
| Weight | 3t ± 0.2t |
| Communication Interface | LAN , RS485 |

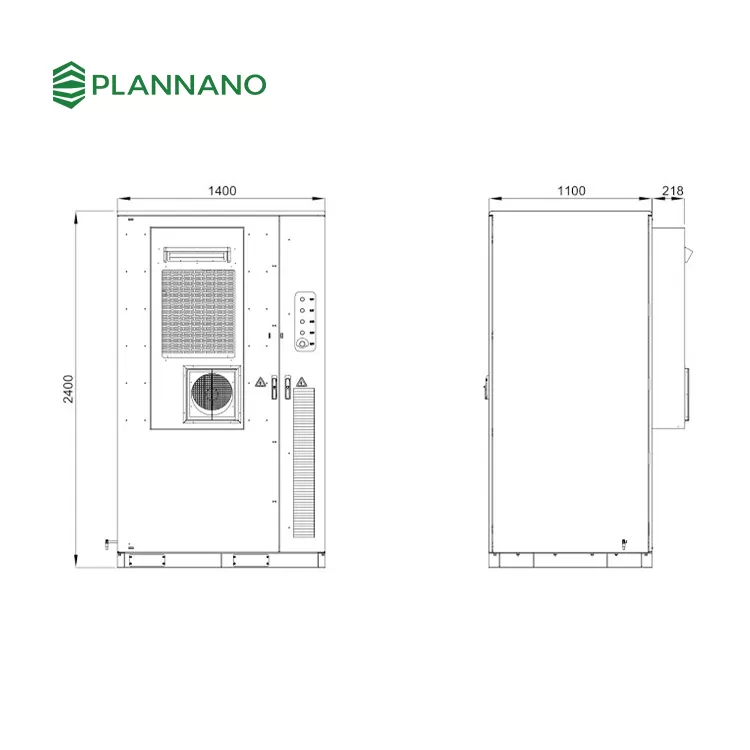

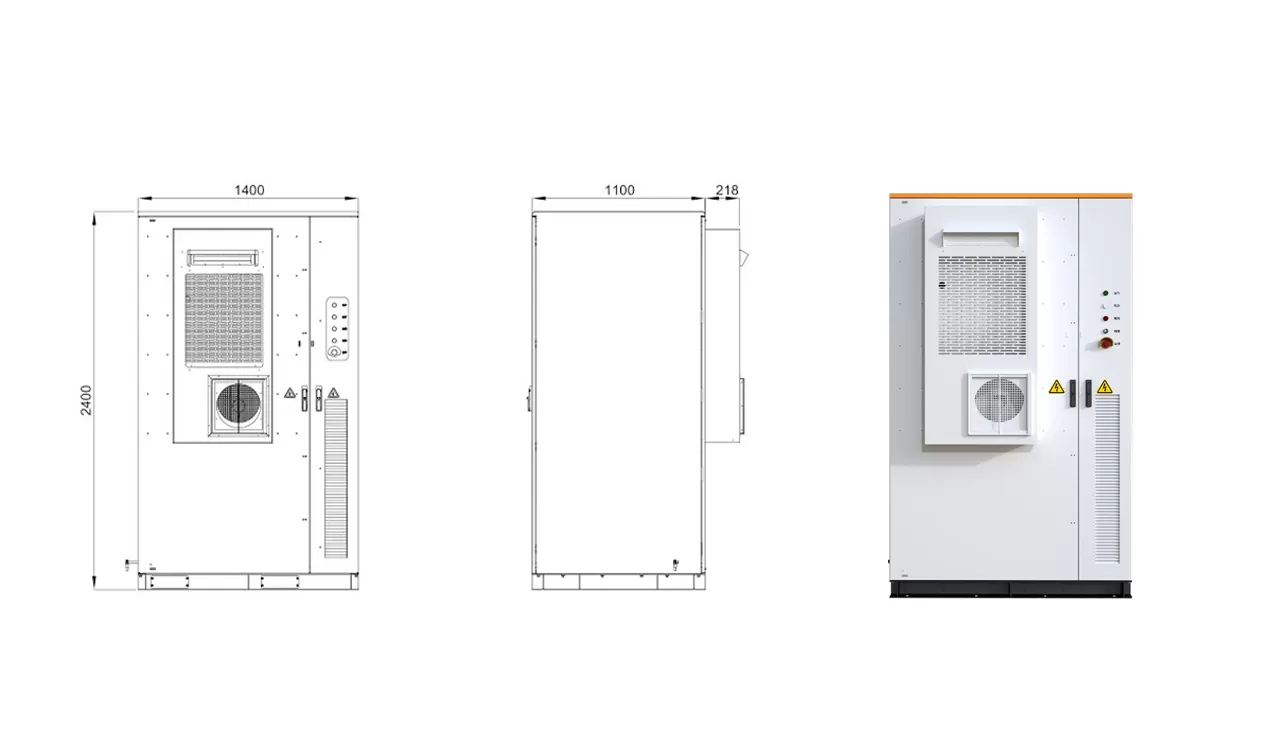

| Dimensions | 1400*2400*1100 |
-PLANNANO-100KW 215KWH Commercial and Industrial Energy Storage System Diagram Topology Diagram
Product Advantage
Efficient Conversion
① Intelligent temperature control system, improve system efficiency and battery cycle life;
②With bi-directional variable current, charging with constant current, constant voltage and constant power mode;
③Reduce the loss of parallel mismatch between battery clusters;
Avoiding the system risk of inter-cluster circulation.
High Precision Intelligence
①Satisfy smart grid design specifications;
② Integrate local controllers to realize unified scheduling management, and the stand-alone system can independently perform peak shaving and valley filling;
③ Equipped with PQ, VF, SVG and other functions, supporting the function of independent operation of microgrid;
④ Outdoor type design, protection grade IP54.
Easy and Flexible
① AC side PCS adopts modularized design for easy installation and maintenance;
② support multiple PCS AC parallel operation configuration program more flexible;
③Integrated transportation, on-site construction simple data interaction visualization.
