Dry Electrode Foil
Contact Us

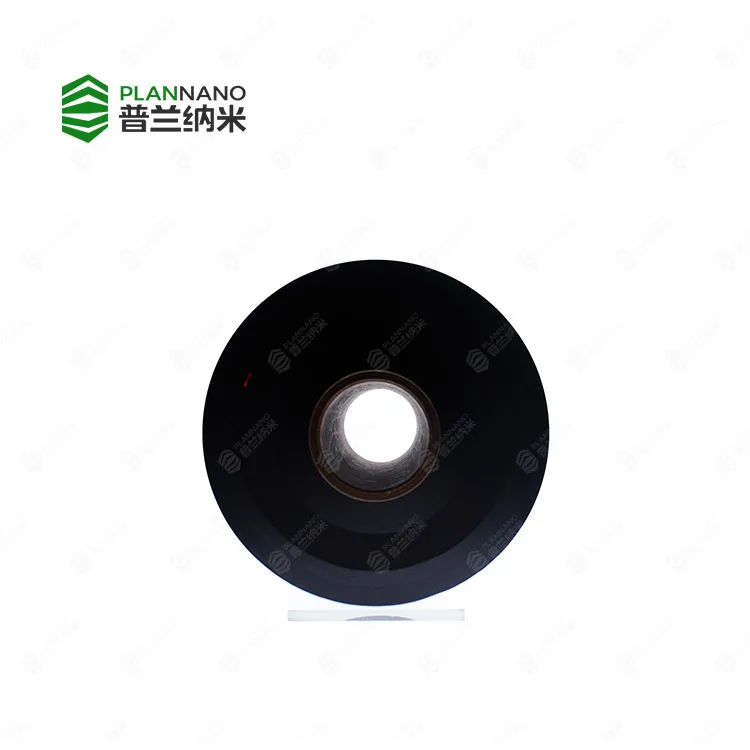

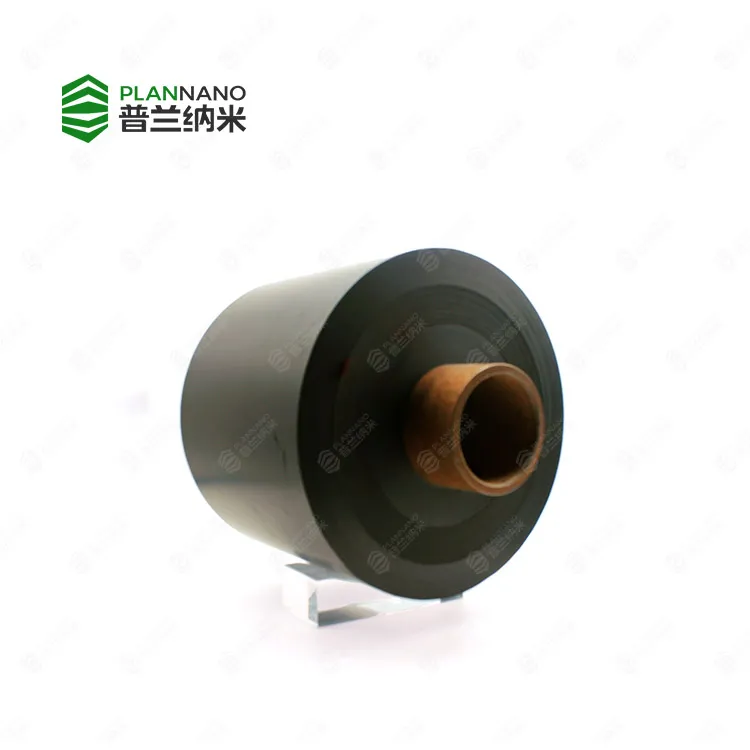

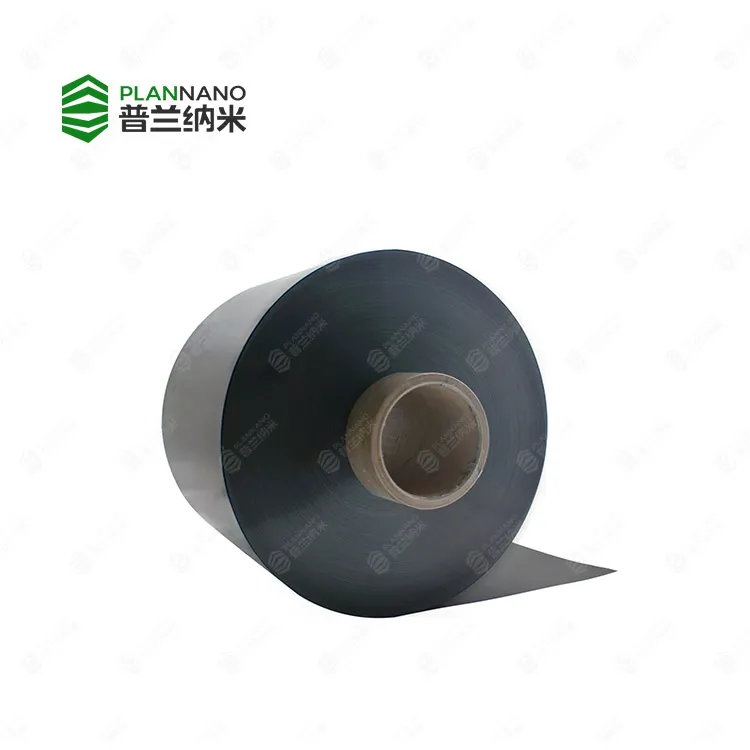

PHD single-sided Dry Electrode Foil
High Capacity PHD Series
Cycle life：Improve100%
Power density：Improve35%
Energy density：Improve30%
Technical Parameter
Project
Specification
| Product Model | PL-PHD-22600-135 |
| Polar type | single-sided |
| Total width (mm) | 226 |
| Width of material area (mm) | 226 |
| Unilateral blank width (mm) | 0 |
| Thickness of polarizer (mm) | 135 |
| Reference capacity utilization in double-layer capacitors F/m² | 2161±3% |
*All products can be customized according to customer needs
Product Advantage
Covered area
Improve100%
Working Temperature
It can be widened to -55 ~ 85 °C
Working Humidity
up to 85%
Green and environmental protection
No VOC emission
