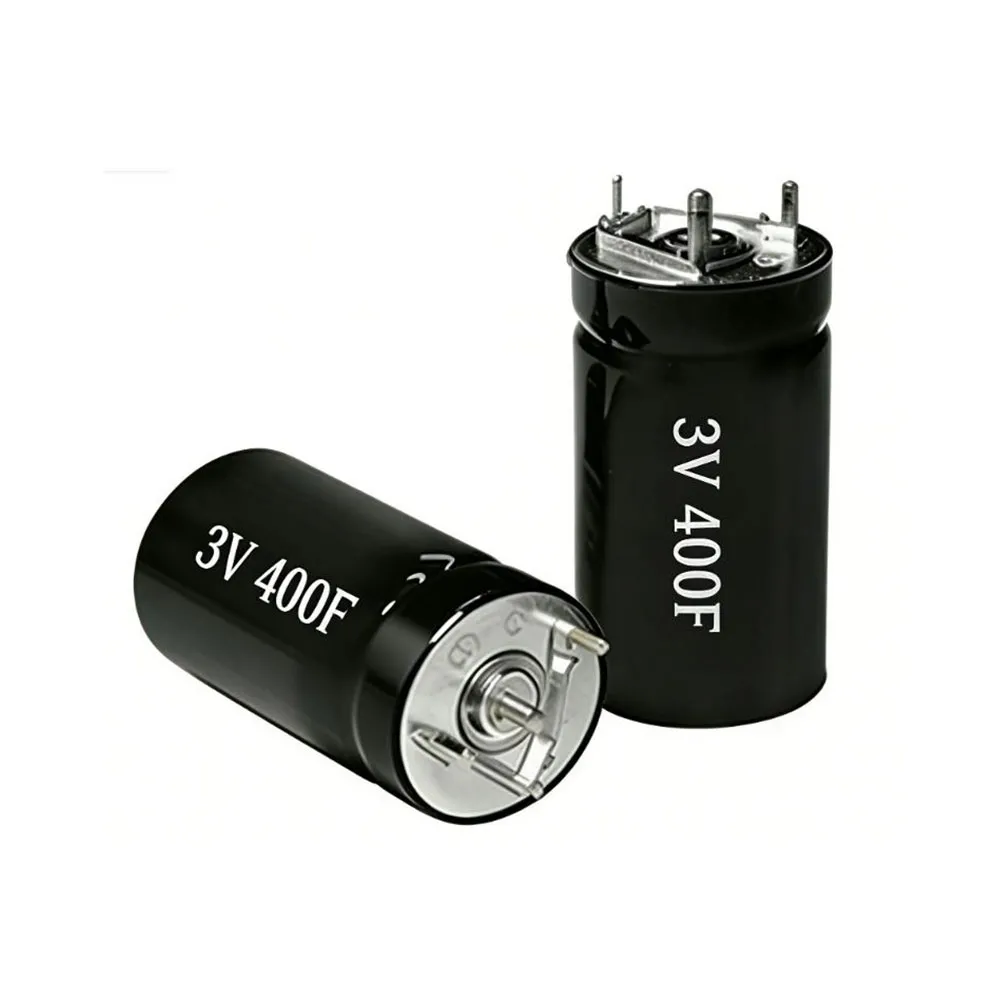

3.0V 400F Supercapacitor Cell Ultracapacitor For AIDC
Product advantages
Application scenarios
Utilizing Self-produced dry electrode.
Compared with traditional capacitors, the energy density exceeds 10%.
Long life, more than 1 million times.
AIDC
Energy Recovery & Instant Start
Frequency Regulation
Technical Parameter
Project
Values
Detail Specifications
| Items | PLUC0400C3RO0TBA |
| Rated voltage | 3.0 V |
| Rated Capacitor | 400 F |
| ESR (DC 10ms) | 0.85 mΩ |
| ESR (DC 1s) | 1.08 mΩ |
| Maximum Peak | 458 A |
| MCC ΔT= 15°C | 37 A |
| MCC ΔT= 40°C | 60 A |
| Leakage Current (72h) | 0.9 mA |
Temp. Range | -40~+65 ℃ |
Stg Temp | -40~+70 ℃ |
| Cycle life | >1 Million （Times） |
| Storage Life | 5 Years |
| Store Energy | 0.55 Wh |
| Energy Density | 8 Wh/kg |
| Usable PoWer | 15.65 KW/kg |
| Dimensions | 33x61 mm |
