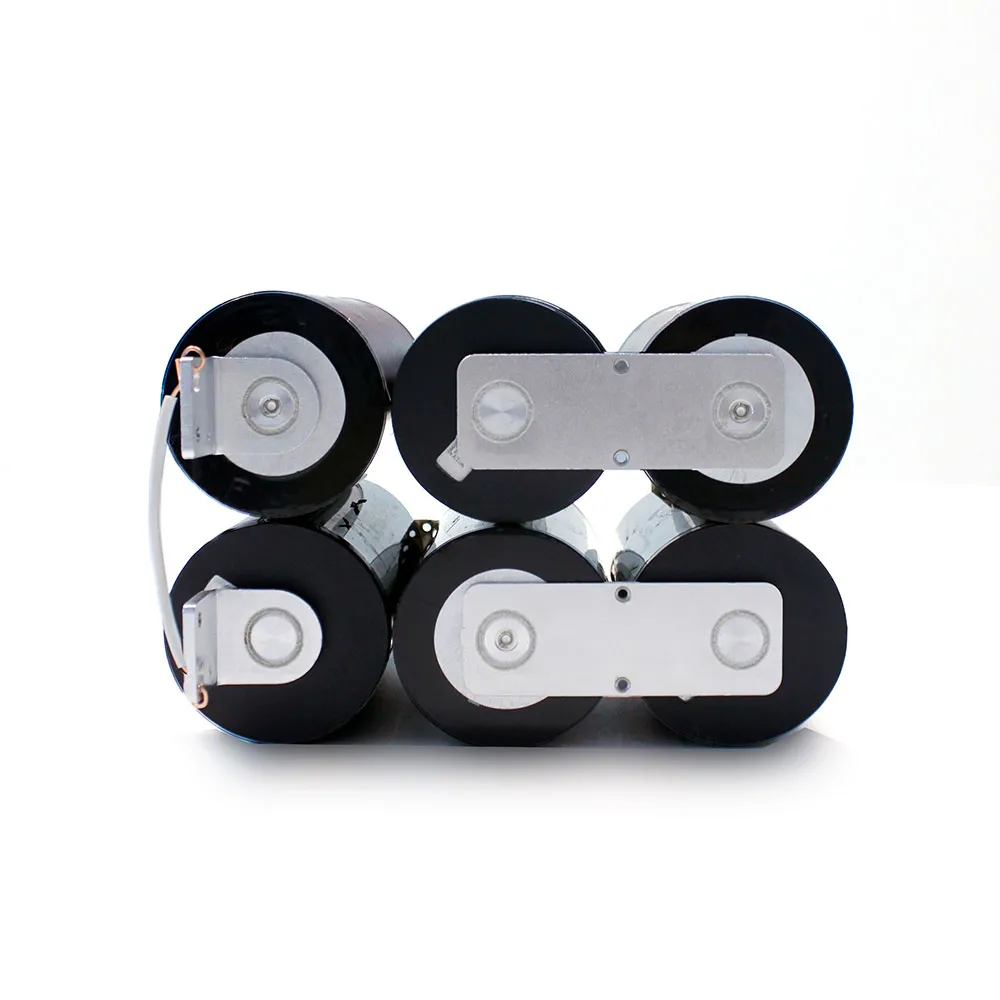

12V 566F Dry process chip supercapacitor module
Product advantages
High power, low resistance and long service life.
IP65 protection level.
Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.
Technical Parameter
Project
Values
| Nominal Capacity | 566 F |
| Operatig Voltage Range | 18 V |
| Max. Continuous Current(AT=15°C) | 145 A |
| Max. Continuous Current(AT=40°C) | 238 A |
| Max. Peak Current (1s) | 2917 A |
| Max. Storage Energy | 25.5 Wh |
| Operating Temperature | -40~65 °C |
| Short Circuit Current | 12500 A |
| Leakage Current | 12 mA |
| Cell | 3.0V 3400F(1P6S) |
| ESR | ≤1.9 mΩ |
