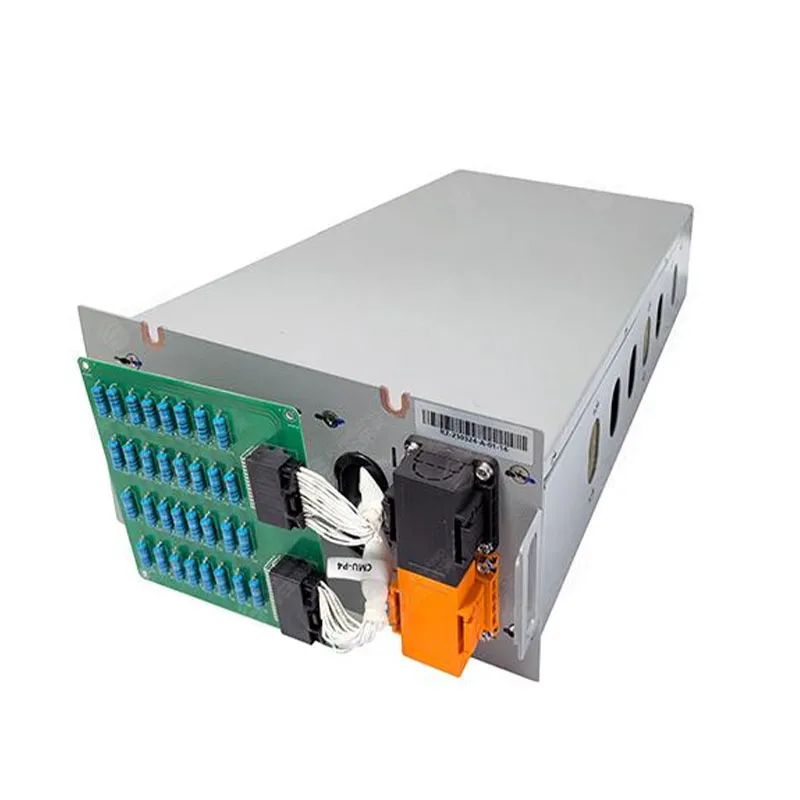

144V 31.25F(1P48S) Dry process chip supercapacitor module

Product advantages

Product advantages

  • Cycle life:Improve100%

    Power density:Improve35%

    Under high temperature and high humidity conditions, the DC life is longer than 1500 hours.

Technical Parameter

  • Project

    Values

    Nominal Capacity31.25 F
    Operatig Voltage Range144 V
    Max. Continuous Current(AT=15°C)103 A
    Max. Continuous Current(AT=40°C)169 A
    Max. Peak Current (1s)1600 A
    Max. Storage Energy1.88 Wh
    Operating Temperature-40~65 °C
    Short Circuit Current11000 A
    Leakage Current8 mA
    Cell3.0V  1500F(1P48S)
    ESR≤13 mΩ
    Combination Mode1P60S
    Protection LevelIP20
    Weight≤31kg
    Size444 x 692 x 165
