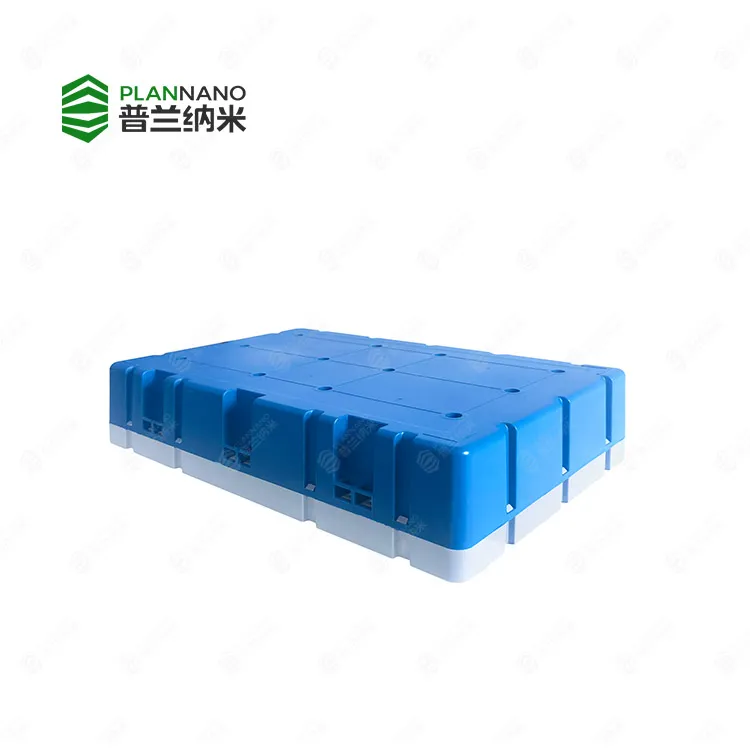

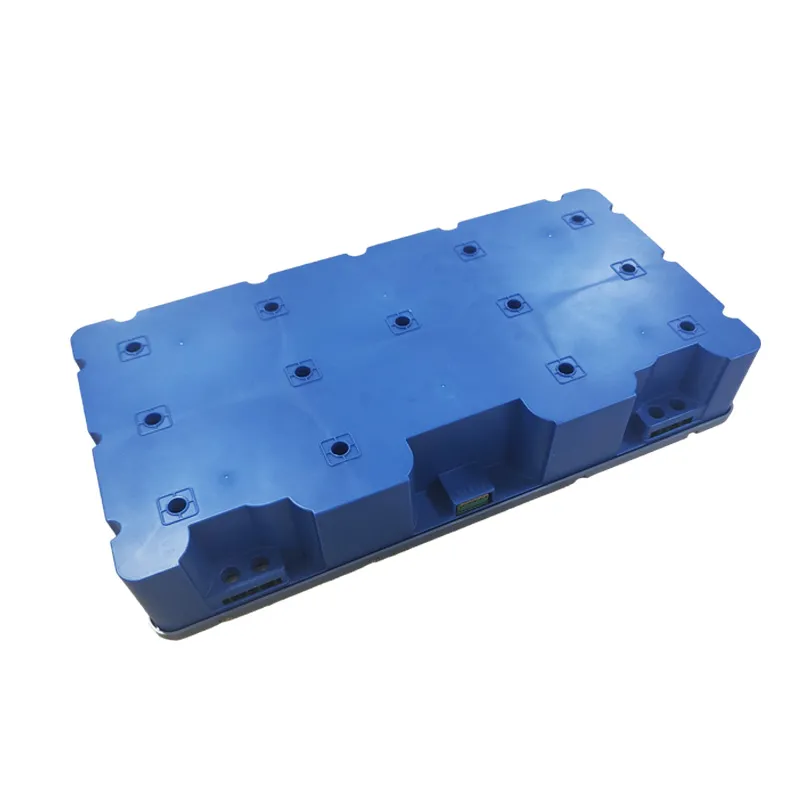

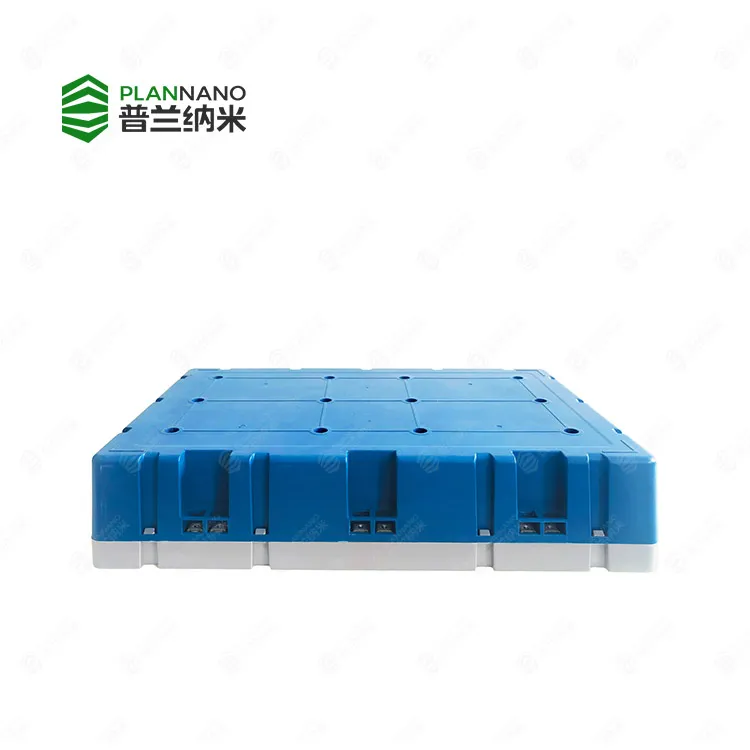

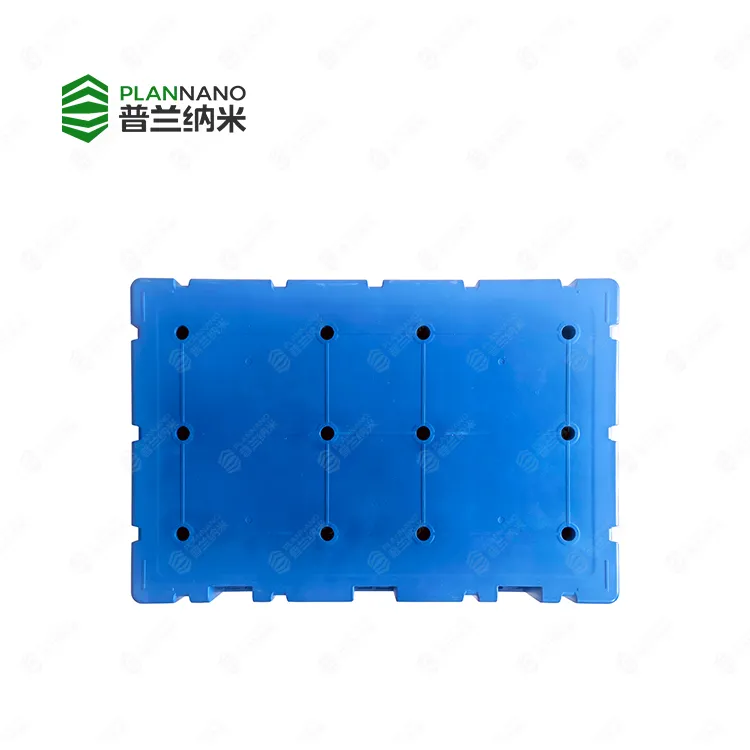

`160V 5.8F(1P60S) Dry process chip supercapacitor module
Product advantages
Cycle life：Improve100%
High power, low resistance and long service life.
Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.
Technical Parameter
Project
Values
| Nominal Capacity | 5.8 F |
| Nominal Voltage | 160 V |
| ESR | ≤200 mΩ |
| Max. Continuous Current(AT=40°C) | 238 A |
| Max. Peak Current (1s) | 214 A |
| Max. Storage Energy | 20.6 Wh |
| Operating Temperature | -40~65 °C |
| Cell Specifications | 2.7 / 350 |
| Combination Mode | 1P60S |
| Protection Level | IP30 |
| Weight | 6.0±0.15 |
| Size | 367x235x80 |
