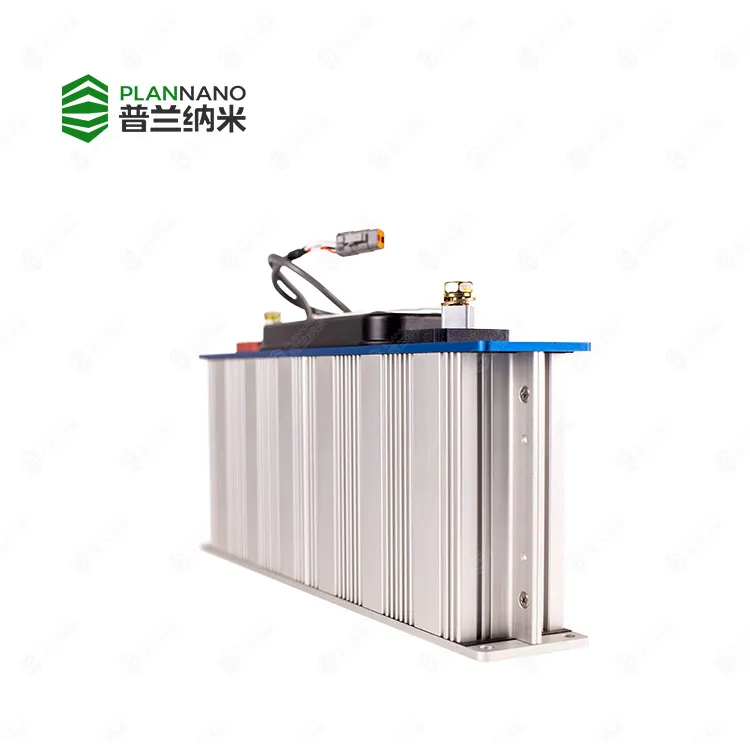

16V 500f(1P6S) Dry electrode supercapacitor module

Product advantages

Product advantages

  • High power, low resistance and long service life.

    IP65 protection level.

    Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.

Technical Parameter

  • Project

    Values

    Nominal Capacity500 F
    Operatig Voltage Range0-16.2 V
    Max. Continuous Current(AT=40°C)199 A
    Max. Peak Current (1s)1951 A
    Max. Storage Energy17.8 Wh
    Operating Temperature-40~65 °C
    Short Circuit Current7600 A
    Leakage Current5.2 mA
    Weight6.0+0.2 KG
    Cell2.7V  3000F
    Size418*69*180 mm
