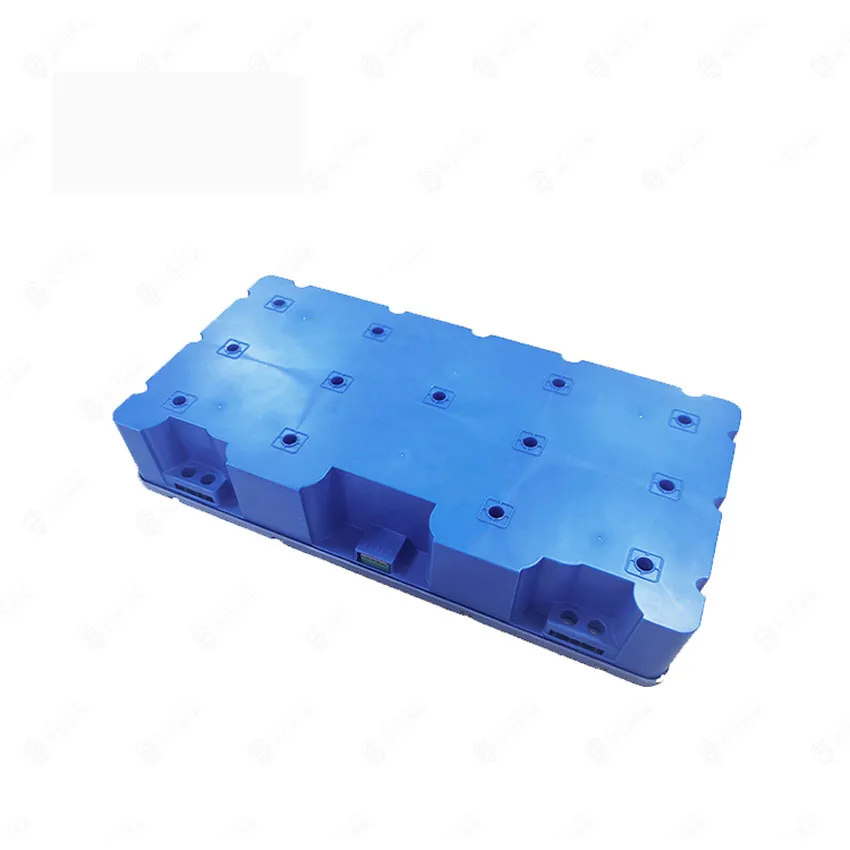

`170V 12.5F(1P64S) Dry process chip supercapacitor module
Product advantages
Cycle life：Improve100%
Power density：Improve35%
Under high temperature and high humidity conditions, the DC life is longer than 1500 hours.
Technical Parameter
Project
Values
| Nominal Capacity | 12.5 F |
| Nominal Voltage | 170 V |
| ESR | ≤200 mΩ |
| Max. Continuous Current(AT=40°C) | 40 A |
| Max. Peak Current (1s) | 276 A |
| Max. Storage Energy | 50.17 Wh |
| Operating Temperature | -40~65 °C |
| Cell Specifications | 2.7 / 800 |
| Combination Mode | 1P64S |
| Protection Level | IP20 |
| Weight | ≤8.4 |
| Size | 528x270x90 |
