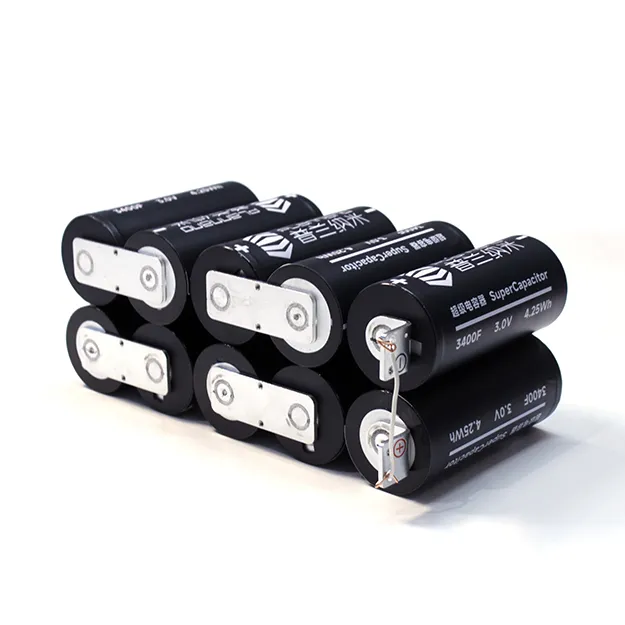

30V 340F Dry process chip supercapacitor module

Product advantages

Product advantages

  • High power, low resistance and long service life.

    IP65 protection level.

    Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.

Technical Parameter

  • Project

    Values

    Nominal Capacity340 F
    Operatig Voltage Range30 V
    Max. Continuous Current(AT=15°C)145 A
    Max. Continuous Current(AT=40°C)238 A
    Max. Peak Current (1s)2917 A
    Max. Storage Energy45.5 Wh
    Operating Temperature-40~65 °C
    Short Circuit Current6250 A
    Leakage Current12 mA
    Cell3.0V  3400F(1P6S)
    ESR≤2.4 mΩ
