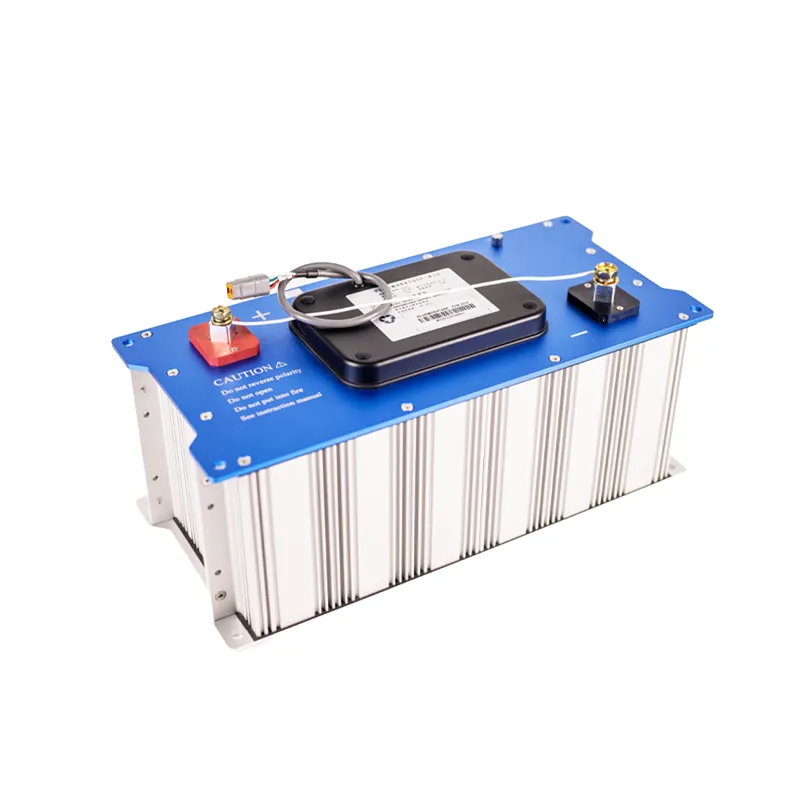

48V 165F(1P18S) Dry process chip supercapacitor module
Product advantages
High power, low resistance and long service life.
IP65 protection level.
Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.
Technical Parameter
Project
Values
| Nominal Capacity | 165 F |
| Operatig Voltage Range | 0-48.6 V |
| Max. Continuous Current(AT=40°C) | 163 A |
| Max. Peak Current (1s) | 1990 A |
| Max. Storage Energy | 52.8 Wh |
| Operating Temperature | -40~65 °C |
| Short Circuit Current | 8000 A |
| Leakage Current | 6 mA |
| Weight | 15.05+0.5 KG |
| Cell | 2.7V 3000F(1P18S) |
| Size | 418*194*180 mm |
