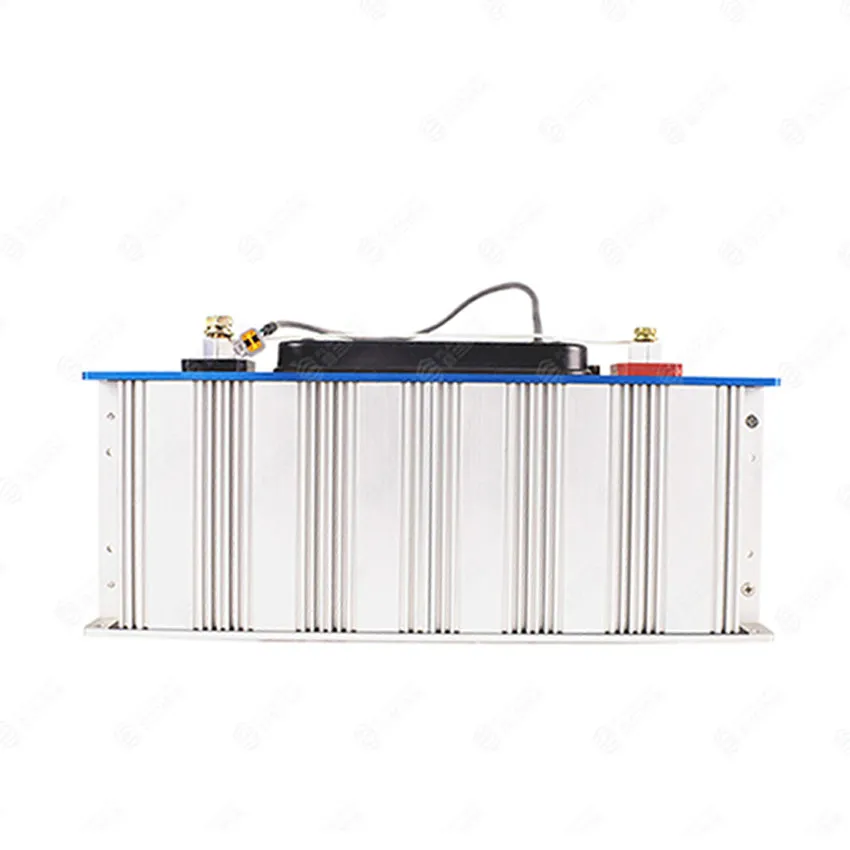

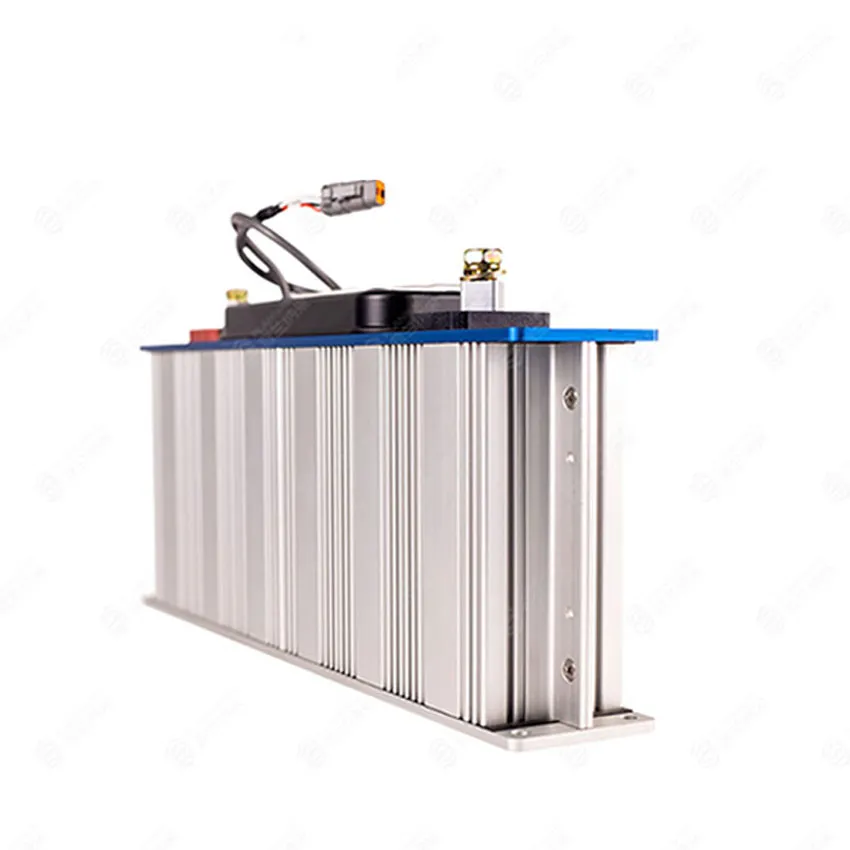

54V 188F(1P18S) Dry process chip supercapacitor module
Product advantages
High power, low resistance and long service life.
IP65 protection level.
Active/passive equalization device and can be equipped with over-voltage or over-temperature alarm.
Technical Parameter
Project
Values
| Nominal Capacity | 188 F |
| Operatig Voltage Range | 0-54 V |
| Max. Continuous Current(AT=40°C) | 163 A |
| Max. Peak Current (1s) | 1990 A |
| Max. Storage Energy | 75.6 Wh |
| Operating Temperature | -40~65 °C |
| Short Circuit Current | 7600 A |
| Leakage Current | 5.2 mA |
| Weight | 15 KG |
| Cell | 3.0V 3400F |
| Size | 418*194*180 mm |
