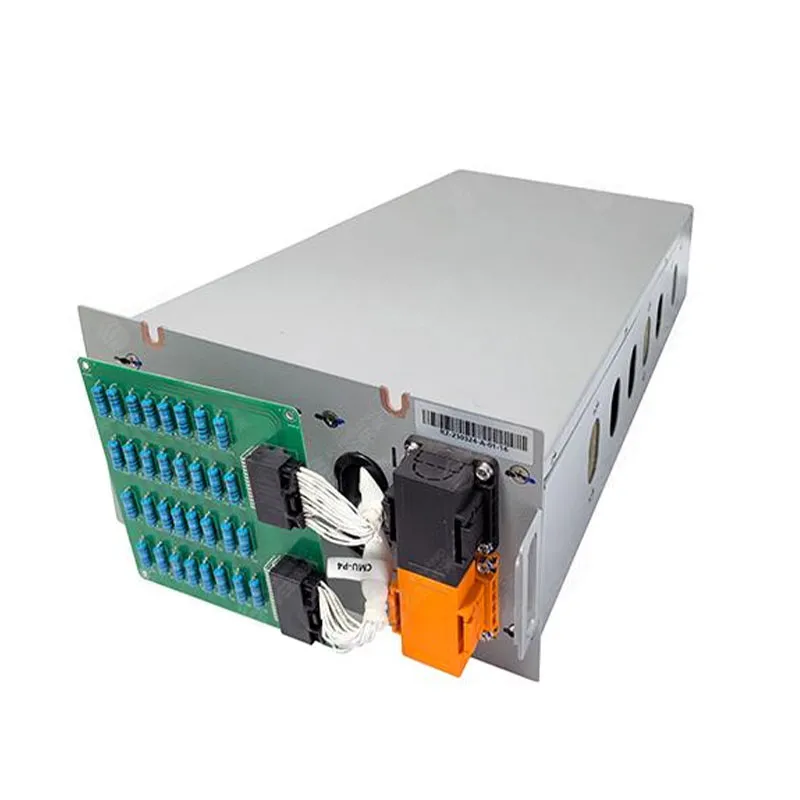

96V 46.88F(1P32S) Dry process chip supercapacitor module
Product advantages
Cycle life：Improve100%
Power density：Improve35%
Under high temperature and high humidity conditions, the DC life is longer than 1500 hours.
Technical Parameter
Project
Values
| Nominal Capacity | 46.88 F |
| Operatig Voltage Range | 96 V |
| Max. Continuous Current(AT=15°C) | 103 A |
| Max. Continuous Current(AT=40°C) | 169 A |
| Max. Peak Current (1s) | 1527 A |
| Max. Storage Energy | 1.88 Wh |
| Operating Temperature | -40~65 °C |
| Short Circuit Current | 11200 A |
| Leakage Current | 8 mA |
| Cell | 3.0V 1500F |
| ESR | ≥500 mΩ |
| Combination Mode | 1P32S |
| Protection Level | IP20 |
| Weight | ≤22kg |

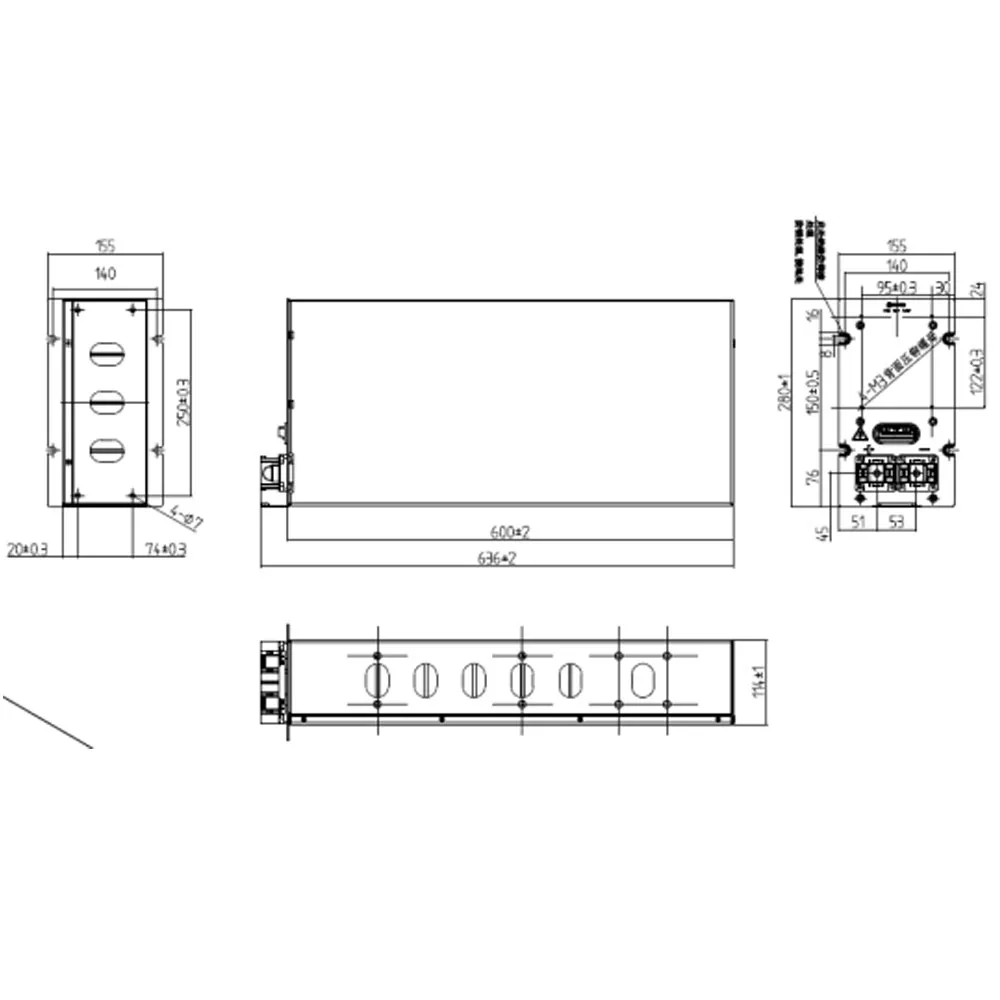

| Size | 636 x 155 x 280 |
