Ultracapacitor CELL & MODULES
Contact Us

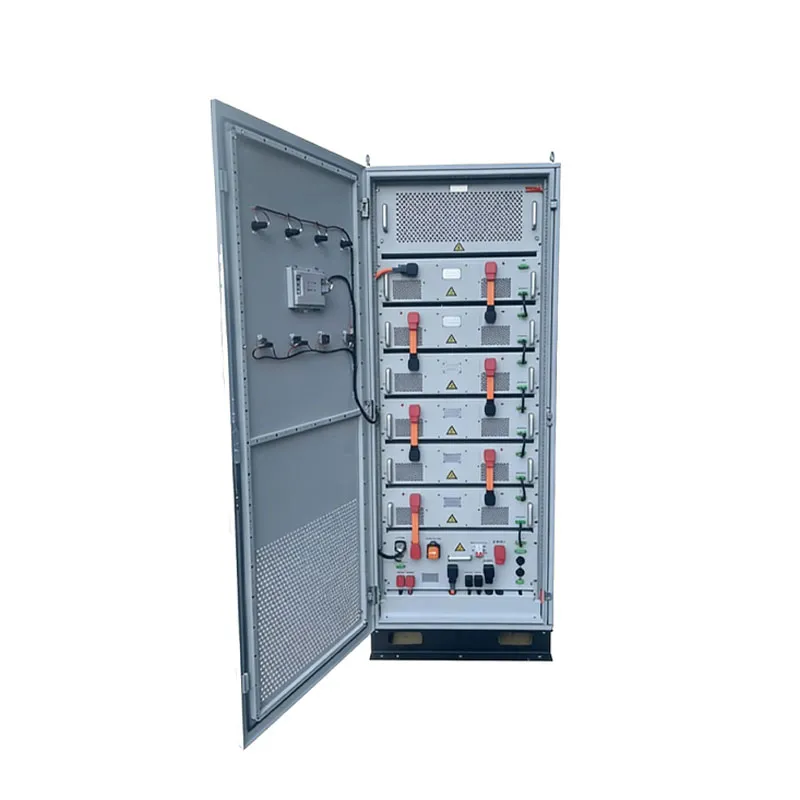

630KW /3S Supercapacitor System
Special Electric
Compared with traditional capacitors, the energy density exceeds 10%.
High power, low resistance and long service life.
Under high temperature and high humidity conditions, the DC life is longer than 1500 hours.
Technical Parameter
Product Mode
PLPF01400C0-0768 ROA
| AC Rated Voltage | 400 V |
| Rated Power | 630 KW |
| DC Operating Voltage Range | DC580~DC850 V |
| Compensation Time | 3S |
| Cell Selection | 3400 F |
| Cell Internal Resistance | ≤0.15 mΩ |
| Module Specification | 145.8V 63F (1P54S) |
| Cabinet Configuration | 874V 10.5F (1P10S) |
| Single cabinet dimensions | L800*D750*H2200 mm |
| Single cabinet weight | 6000 KG |
| System Specifications | 874V 126F（1P12S） |
Product Advantage
