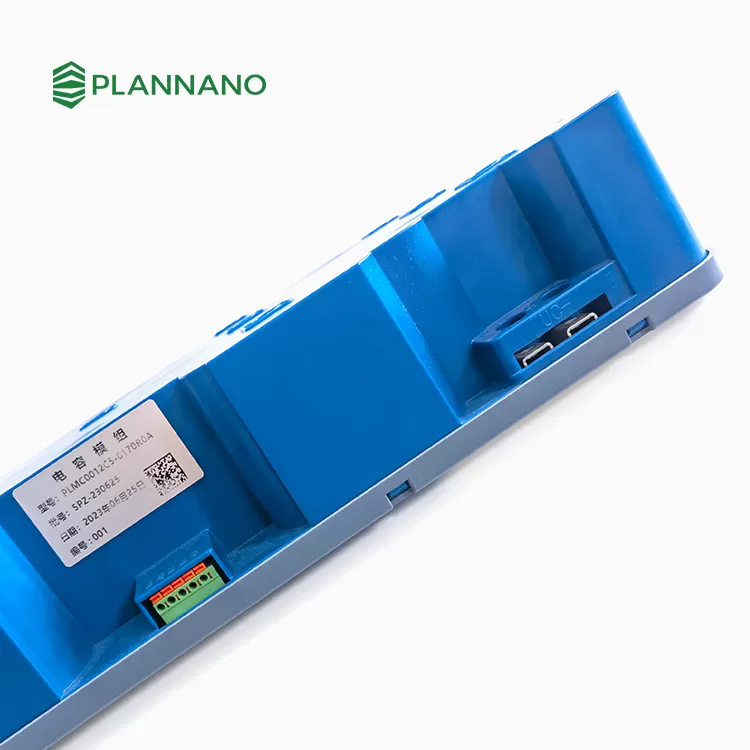

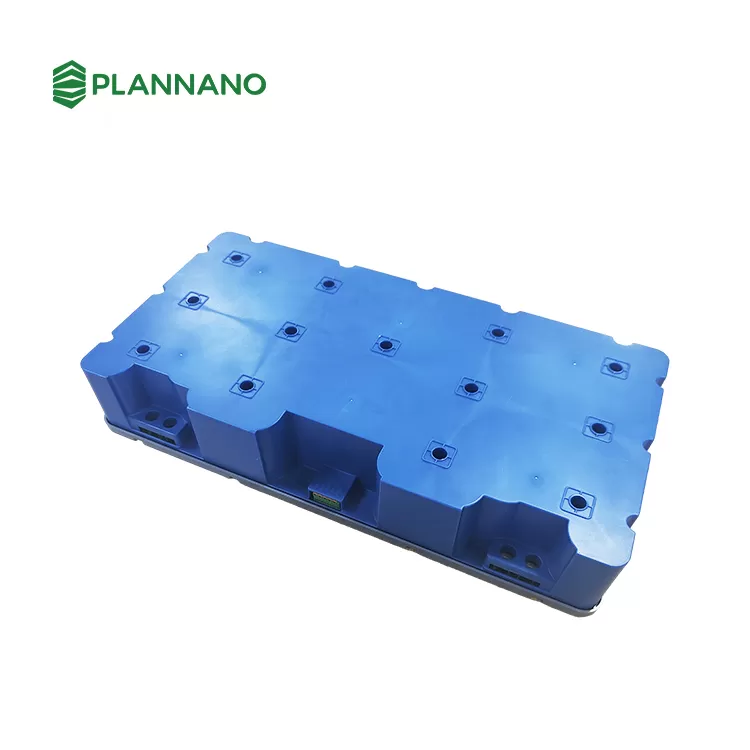

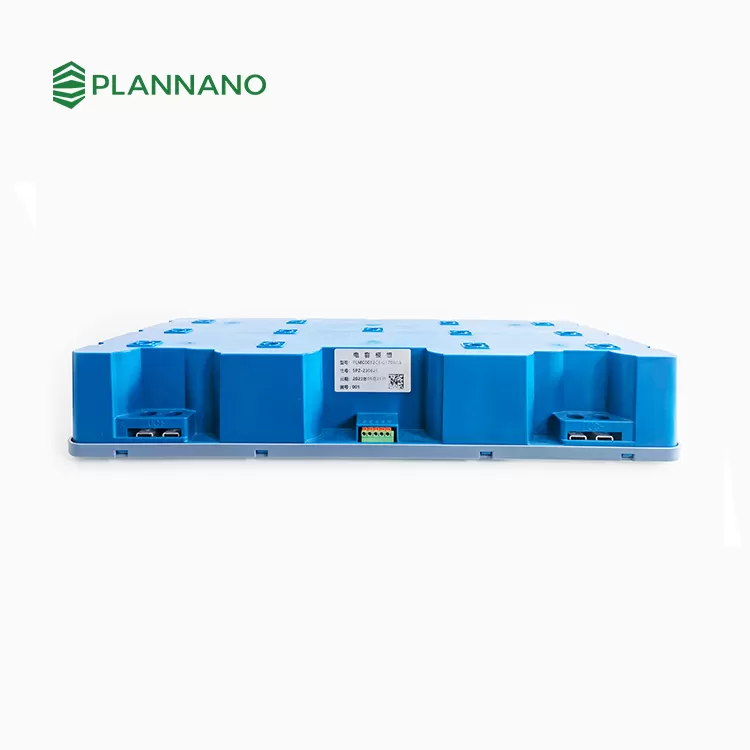

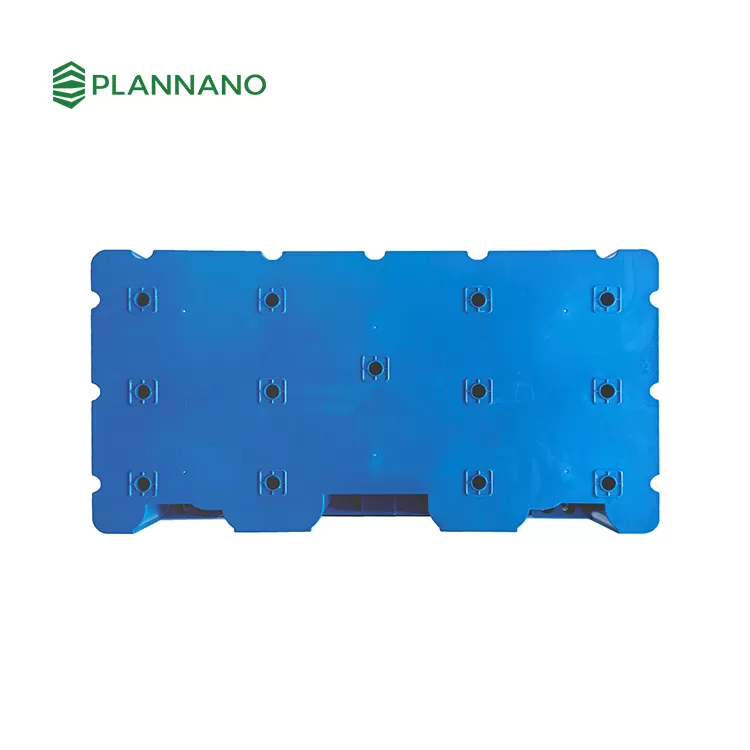

170V 12.5F SuperCapacitor Module
Fast Charging and Discharging in seconds
High Power Density
Long Cycle Life 1 million Cycle
Non-explosive and fire-safe
Technical Parameter
Items
PLMC0012C5-0170R0A
Detail Specifications
| Items | PLMC0012C5-0170R0A |
| Rated Capacitance | 5.8F |
| Capacitance Tolerance | 0% ~100% |
Nominal voltage VR | 170V DC |
Surge voltage VS | 175V DC |
| ESR | ≤264mΩ |
| Maximum Continuous Current IMCC (∆T=15℃) | 24A |
| Maximum Continuous Current IMCC (∆T=40℃) | 40A |
| Maximum Peak Current (1s)Imax | 276A |
| Short Circuit Current IS | 644A |
| Leakage Current IL | 42mA（170V） |
| Self-Discharge Rate | ≥80% |
| Maximum Storage Energy E | 0.81Wh |
| Mass Energy Density Ed | 5.23Wh/kg |
| Maximum Power Density Pmax | 2850W/kg |
| Operating Temperature Range | -40~+65℃ |
| Insulation Resistance | ≥500MΩ |
| Withstand Voltage | ≤2mA |
| Protection level | IP30 |
| Cycle Life | 500,000 cycles |
170V 12.5F SuperCapacitor Module
Product Advantage
Fast Charging and Discharging in seconds
High Power Density
Long Cycle Life 1 million Cycle
Non-explosive and fire-safe
